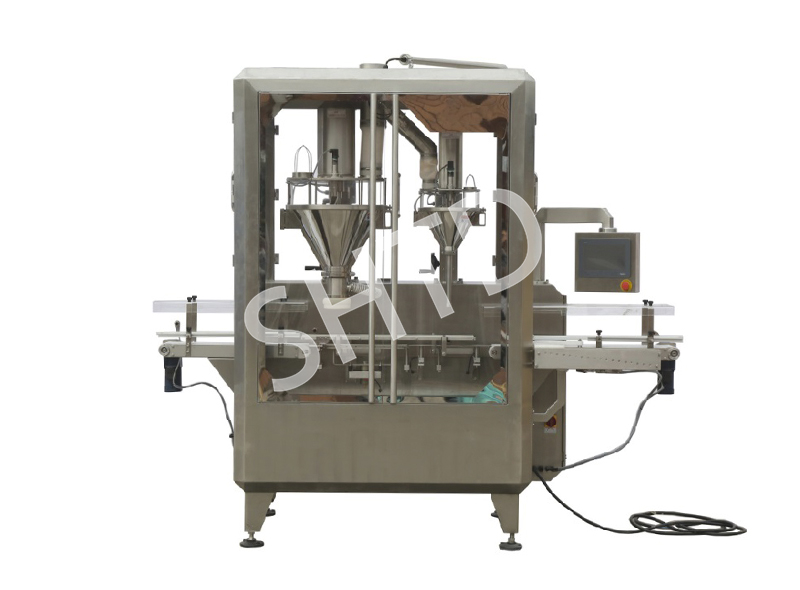

Automatic filling machine (1 line 2 fillers )
This series machine is a new-designed that we make it on placing the old turnplate feeding on
one side. Dual auger filling within one line main-assist fillers and the originated Feeding system
can keep the high-precision and take off the tiring cleaning of the turntable. It can do the
accurate weighing & filling work, and also could combined with other machines to buildup a whole
can-packing production line. This machine could be used in filling milk powder, albumen powder,
condiment, dextrose, rice flour, cocoa powder, solid drink, and so on.

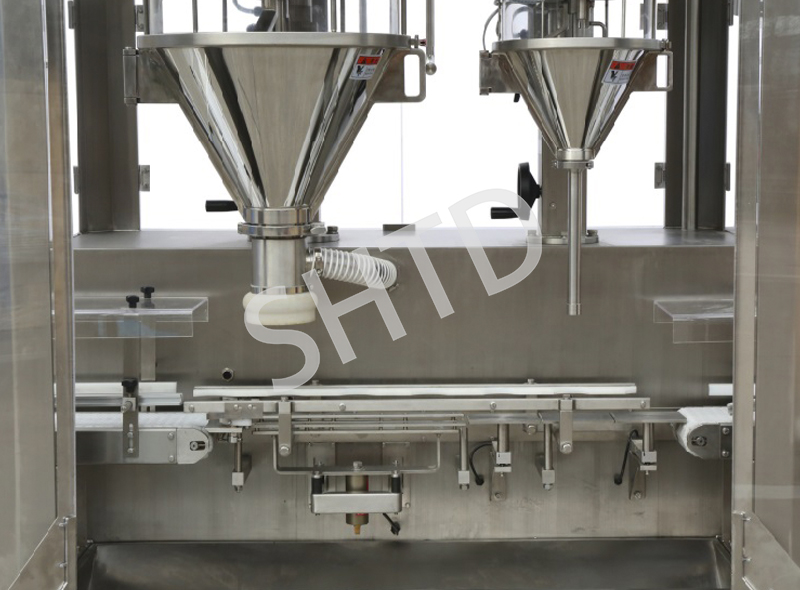

1. One line dual fillers, main & assist filling to keep work in high-precision.
2. Can-up and horizontal transmitting is controlled by servo and pneumatic system, be more accurate, more speed.
3. Servo motor and servo driver control the screw, keep stable and accurate
4. Stainless steel structure, split hopper with polishing inner-out make it to cleaned easily.
5. PLC & touch screen make it be easy of operation.
6. Fast-respond weighing system make the strongpoint to real.
7. The handwheel make the exchange of different filings to be easily.
8. Dust-collecting cover meet the pipeline and protect environment to pollution.
9. Horizontal straight design make the machine in little area.
10. Settled screw setup make no metal pollution in producing.
11. Process: can-into →can-up → vibration → filling → vibration → vibration → weighing & tracing → reinforce → weight checking → Can-out
12. With whole system central control system.
